KARL DEUTSCH – ­Definitely Tested!

Since its foundation in 1949, the owner-managed company KARL DEUTSCH has been engaged in the development and production of equipment for non-destructive material testing. Our range includes devices, sensors, chemical inspection media and systems for ultrasonic, magnetic particle and penetration testing. Measuring instruments for wall thickness, coating thickness and crack depth complete the product range. Characterized by continuous innovation and reliability of our products, the brands ECHOGRAPH, ECHOMETER, LEPTOSKOP, DEUTROFLUX, FLUXA, KD-CHECK and RMG are internationally renowned today.

Contact us

KARL DEUTSCH – ­Definitely Tested!

Since its foundation in 1949, the owner-managed company KARL DEUTSCH has been engaged in the development and production of equipment for non-destructive material testing. Our range includes devices, sensors, chemical inspection media and systems for ultrasonic, magnetic particle and penetration testing. Measuring instruments for wall thickness, coating thickness and crack depth complete the product range. Characterized by continuous innovation and reliability of our products, the brands ECHOGRAPH, ECHOMETER, LEPTOSKOP, DEUTROFLUX, FLUXA, KD-Check and RMG are internationally renowned today.

Contact us

Our Product Portfolio

Ultrasonic Flaw Detectors

ECHOGRAPH

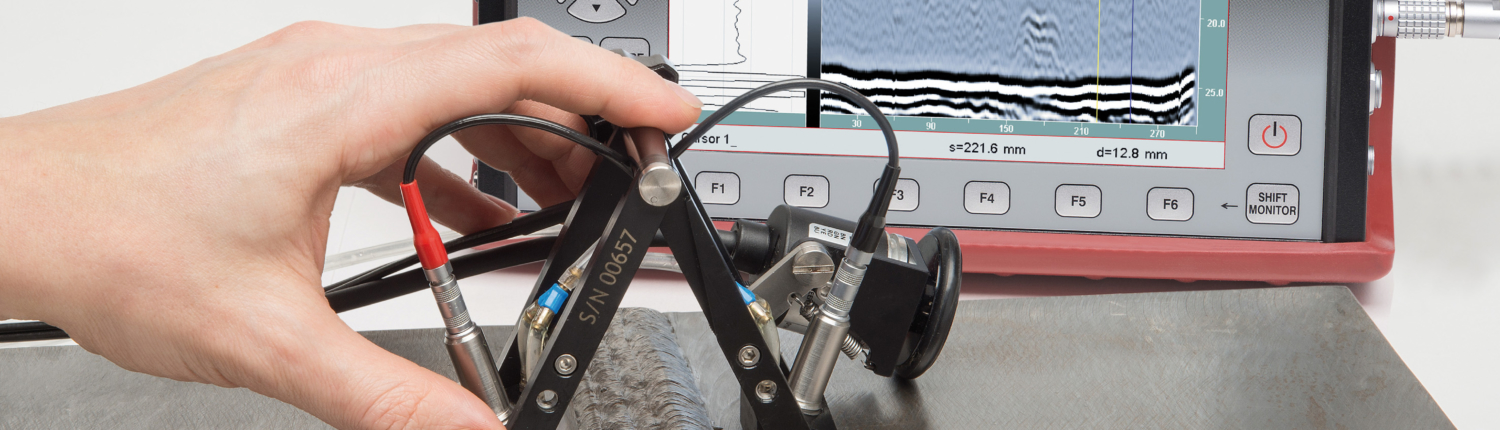

With our ECHOGRAPH ultrasonic testing equipment, material testing of parts that are difficult or impossible to move can be performed on site. The devices are robust and can be operated independently of the mains supply. The test results are displayed directly and can also be subsequently evaluated by computer.

Ultrasonic Testing Systems

Ultrasonic testing systems

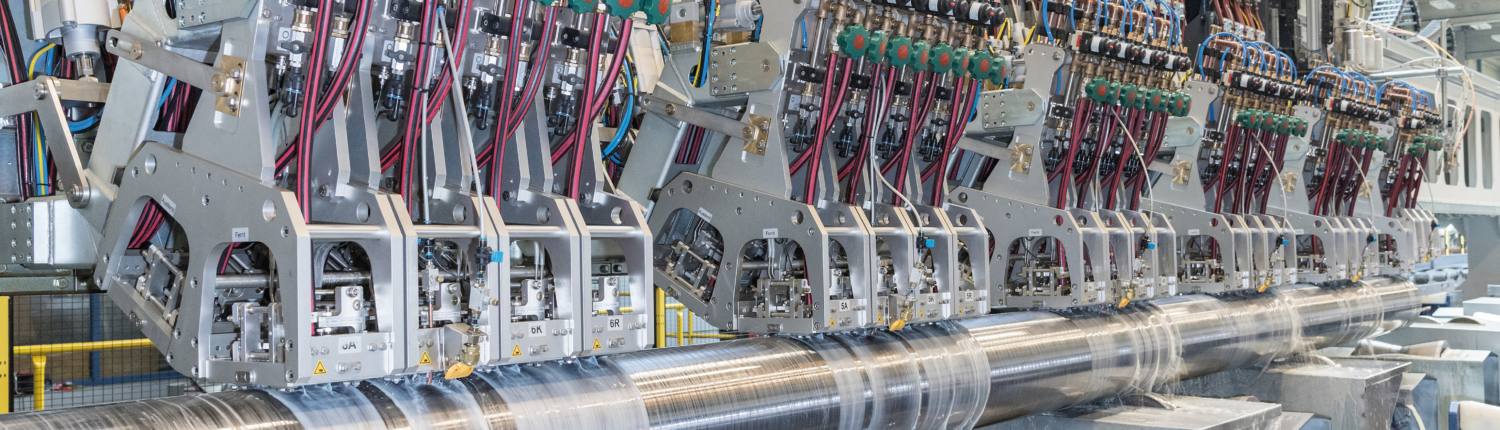

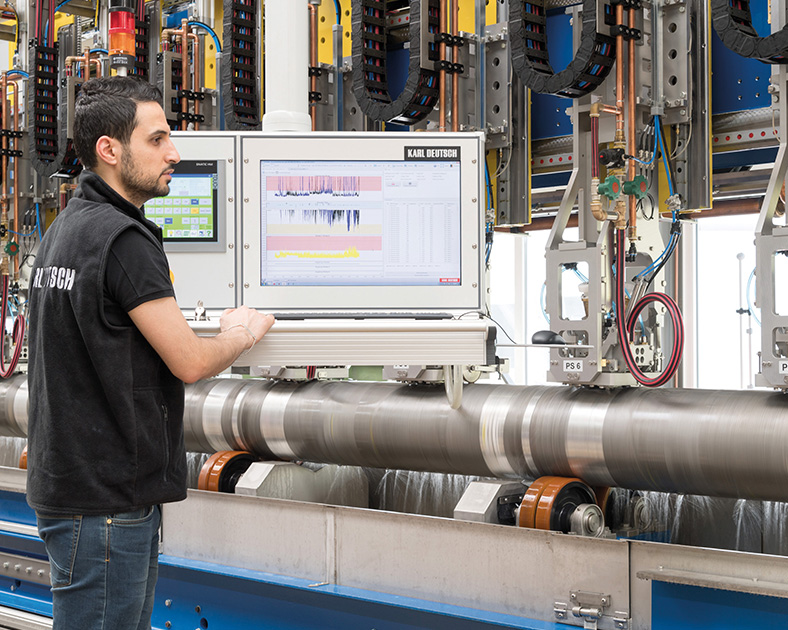

Our individual ultrasonic testing systems can test a wide range of material types and formats semi-automatically or automatically. This enables fast, reliable and objective testing of large batches. Ultrasonic testing systems can also be integrated into existing production lines.

Phased Array Units

Phased-Array-Prüfgeräte

GEKKO and MANTIS have 64 parallel channels and are therefore able to drive matrix arrays (8×8). In addition, the Total Focusing Method (TFM) is implemented in the devices for perfect error display in real time. The latest functions of the CIVA software are also available.

UT Electronics

An industrial PC controls the completely self-sufficient ECHOGRAPH 1170 ultrasonic testing electronics. Strip charts, C-scans, tables and statistics can be generated via the customizable ECHOVIEW software. Alternatively available OEM modules allow experienced integrators to use their own data software.

Ultrasonic Probes

Probes

ECHOGRAPH ultrasonic probes are the result of decades of practical experience, theoretical knowledge and the resulting manufacturing expertise. Of course, the search units are produced under the strict quality standards of a DIN ISO 9001 zertifizierten QM system.

Wall Thickness Gauges

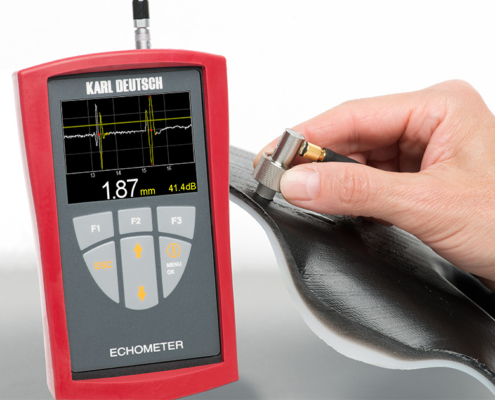

Our ECHOMETER wall thickness gauges determine the wall thickness of sound conductive materials, also through coatings. For very high accuracy requirements or difficult measuring conditions, monoelement search units and a device type with high-resolution A-scan display are available, in which the required measuring parameters can be optimally set with visual support.

Concentration Measurement

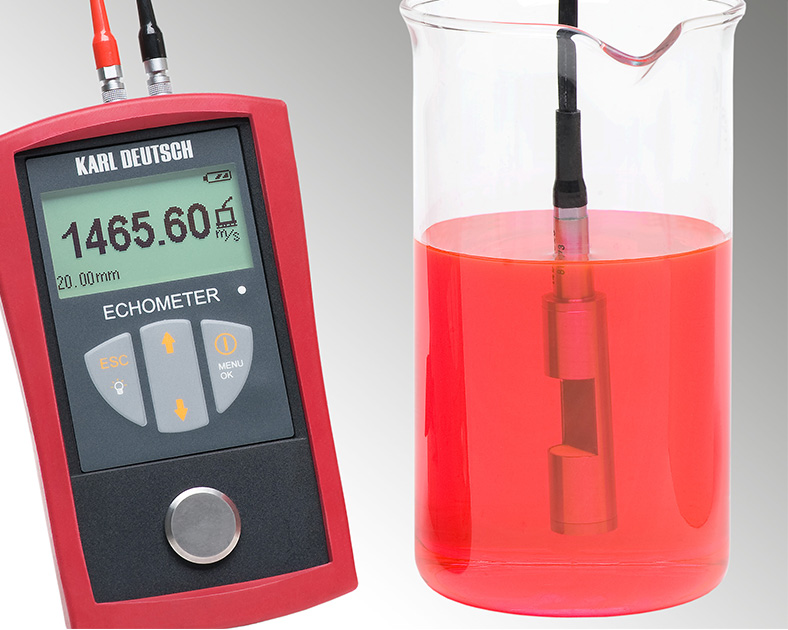

By means of the sound velocity in a liquid the ECHOMETER 1076 K can determine its concentration. A calibration curve describes the physical relationship between sound velocity and concentration. All this is done using a special probe.

Spot Weld Testing

The weld spot testers use a non-destructive testing technique based on ultrasound. The devices reduce the testing time considerably, work in a material-conserving way, with low personnel input and provide a quick feedback on the welding process.

Coating Thickness Gauges

Coating Thickness Gauges

Our compact LEPTOSKOP handheld instruments determine the thickness of non-magnetic layers on magnetizable substrates (magnetic-inductive) and the thickness of non-conductive layers on non-magnetic, electrically conductive base material using the eddy current principle. Depending on the device, the probe is either integrated in the housing or connected externally via a cable.

Crack Depth Gauge

The mobile crack depth gauge RMG 4015 is characterized by its easy handling and versatile application. The robust design enables reliable testing even under harsh outdoor conditions. The device covers a wide range of materials and applications.

Field Strength Measurement

The handy field strength meter is an important accessory for magnetic particle crack detection. Current and field flow can be easily determined during magnetization. After the test, any residual fields can be measured without range switching. The device has a fluorescent keyboard.

Magnetic Particle Crack Detection

Under the brands DEUTROFLUX and DEUTROMAT we offer systems for magnetic particle crack detection. As standardized system for different workpiece lengths or individually designed for complex components. For many years we have been building systems that, for example, test castings for defects quickly, in accordance with standards and reliably.

Penetrant Testing

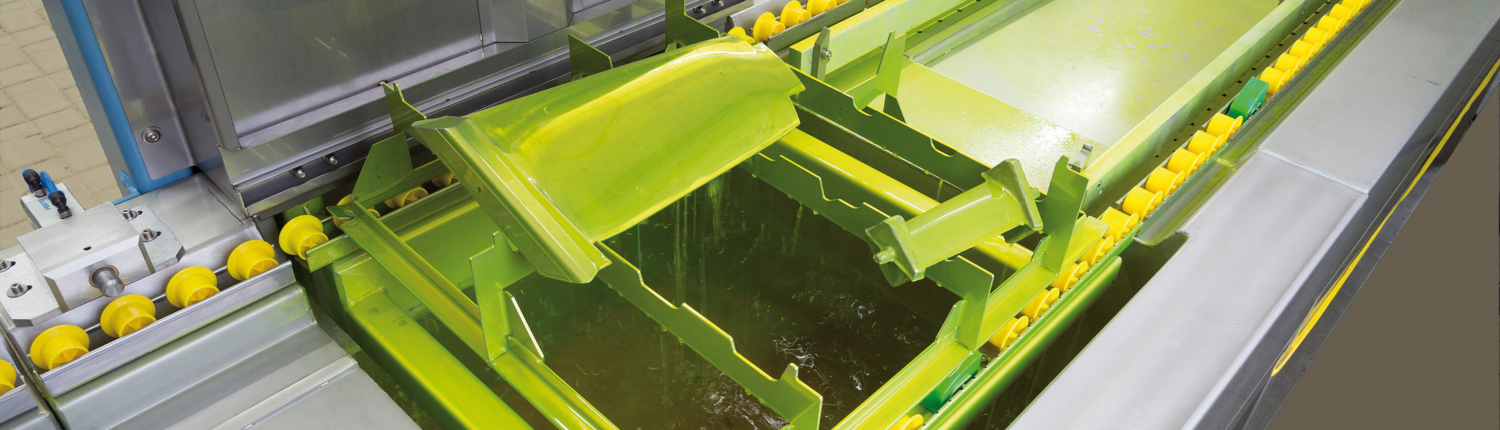

Our KD-CHECK test stations and systems are designed for manual, semi-automatic and fully automatic penetration testing of small to medium-sized components. The test procedure consists of the following process steps: pre-cleaning, penetration, intermediate cleaning, drying, development and evaluation.

Chemical Products

Chemical products for penetrant or magnetic particle crack testing as well as coupling agents are indispensable for non-destructive material testing. User-friendliness and environmental compatibility are an important benchmark for us. Inform yourself here about our wide range of products.

UV-Lamps

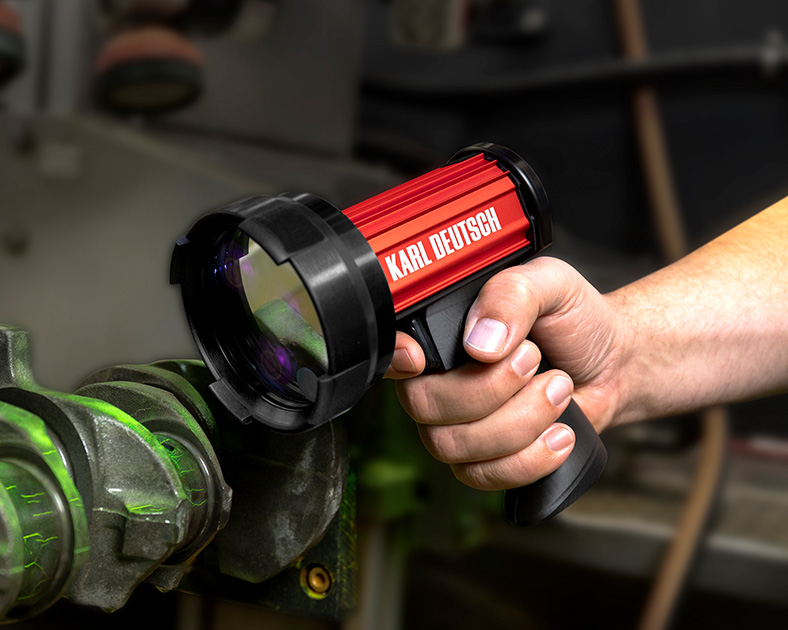

Our UV lamps are available as hand lamps or as stationary large area lamp. Under UV light, the fluorescent test equipment provides high-contrast crack indications. Thanks to the LED technology, the lights are immediately ready for operation and offer both power-saving operation and a long service life.

PC-Software

The evaluation of the measurement data on your own PC is an important part of non-destructive materials testing. With our own software solutions you can conveniently process your test data.

The Company

NDT Knowledge

News and Dates

What characterizes us

Many years of experience

Since its foundation in 1949, the company KARL DEUTSCH has been engaged in the development and production of equipment for non-destructive material testing.

Broad product portfolio

We offer systems, devices, chemical inspection media and sensors for ultrasonic, magnetic particle and penetrant testing, as well as measuring devices for coating thickness, wall thickness and crack depth.

Expertise

Our specialists in the fields of UT, MT and PT work daily to further improve our products that have been established for years. Our customers benefit from this when solving their inspection tasks.

Family business

For the owner-managed company KARL DEUTSCH, classical virtues such as loyalty, stability, trust, honesty and a sense of responsibility are particularly important.

ISO certified

Standardized quality management guarantees state-of-the-art products and a leading position in terms of quality, reliability and economy.

Global presence

More than 150 motivated employees worldwide are available to our customers with a maximum of experience in application technology and manufacturing know-how.
