UV LED Flashlight 3813.502
Product Description

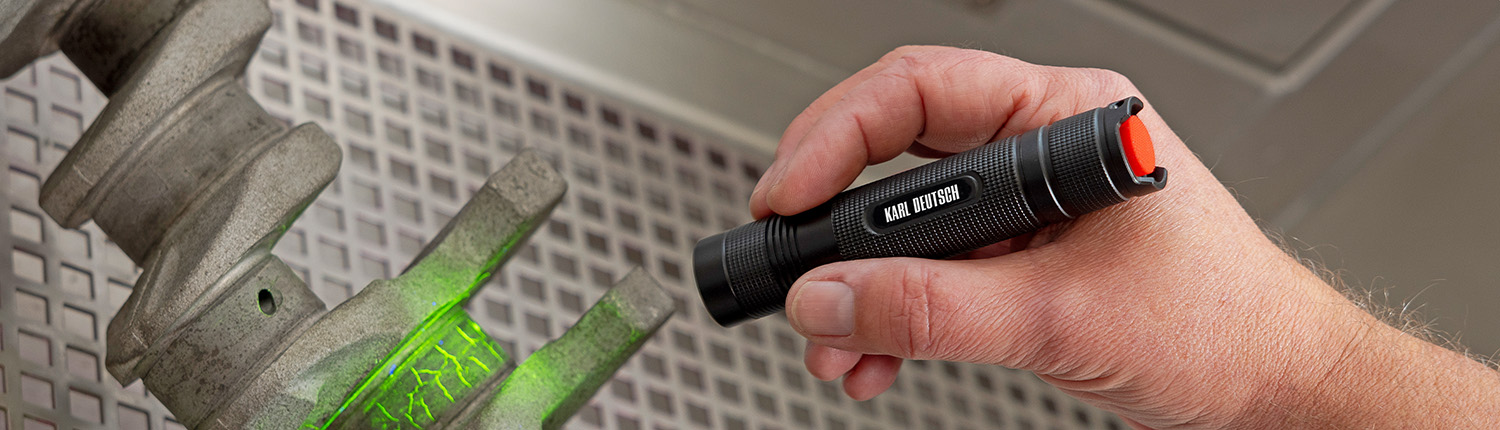

The UV LED Flashlight is a portable, battery-powered UV lamp.
It is designed in particular for magnetic particle testing (MT) and penetrant testing (PT), where it makes the UV-reflecting particles of the testing agents visible and thereby helps with the detection of cracks in the test piece.
The flashlight can be operated with two levels of brightness and is dust- and waterproof (IP67). With the optional spray aid, the flashlight can be attached to an aerosol can so that one hand remains free to align the test piece during visual inspection.
Key Facts
- Light, compact design
- UV lamp with risk class 2 acc. to DGZfP-EM 6 (measured at a distance of 38 cm from the surface)
- UV irradiance: Max. 30 W/m²
- No hazard by UV-B and UV-C radiation
- UV-illuminated area: Ø 140 mm
- Wave length (peak): 365 nm ± 5 nm
- IP protection class acc. to DIN EN 60529: IP67 (dust- and waterproof)
- Powered by lithium-ion battery
- Operation time: 1.5 h per battery charge (min.)
- 2 lithium-ion batteries and battery charger included
- Optional: Spray aid for one-handed, simultaneous usage with spray cans
Versions
UV LED Flashlight (order no.: 3813.502)
incl. 2 batteries, battery charger and carrying case
Spray aid for UV LED Flashlight (order no.: 3813.503)
for one-handed, simultaneous usage with spray cans
Further Information
Our comprehensive brochure:
Things to know and accessories:
