PANTHER – PAUT-Ultrasonic Electronics

Product Description

The PANTHER is a phased array device designed for both desktop and industrial applications, providing outstanding performance in a compact unit.

In combination with the operating software ACQUIRE, PANTHER is currently the fastest and most versatile PAUT/TFM solution on the market.

Key Facts

  • Delay Law calculation for standard and parametric shapes (plates, cylinders, butt welds, T-, K- and Y-seams, elbows, nozzles, turbine blades, nozzles etc.) as well as 2D and 3D CAD
  • Scalable up to 16 Panther units with 256 channels
  • A-Scan, B-Scan, C-Scan, D-Scan, Echodynamics
  • Top view, side and front view
  • Wizards, for instance for real-time phased array calculation, amplitude calibration (TCG/DAC) and probe design
  • IP54


The PANTHER phased array system module comes in a robust housing and is available in four configuration levels:

  • PANTHER 64×64, PA system (order no.: 6145.005)
  • PANTHER 128×128, PA system (order no.: 6145.010)
  • PANTHER 32×128PR, PA System (order no.: 6145.011)
  • PANTHER 256×256, PA system (order no.: 6145.015)

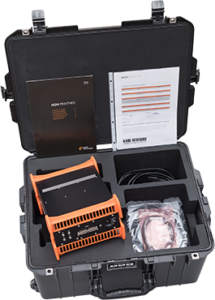

The phased array system module PANTHER in a robust protective case

Further Information

Our comprehensive brochure:

Things to know and accessories:
