Test Panels and Test Block for Penetrant Testing

We offer a wide range of test devices for penetrant testing based on the various German and foreign standards. If you have any questions, we will be happy to assist you.

Reference Test Panel 1

According to DIN EN ISO 3452-3 (JIS reference block) there are four different crack depths:

  • Reference Test Panel 1, Crack Depth 10 µm
    (order no.: 9991.010)
  • Reference Test Panel 1, Crack Depth 20 µm
    (order no.: 9991.020)
  • Reference Test Panel 1, Crack Depth 30 µm
    (order no.: 9991.030)
  • Reference Test Panel 1, Crack depth 50 µm
    (order no.: 9991.050)

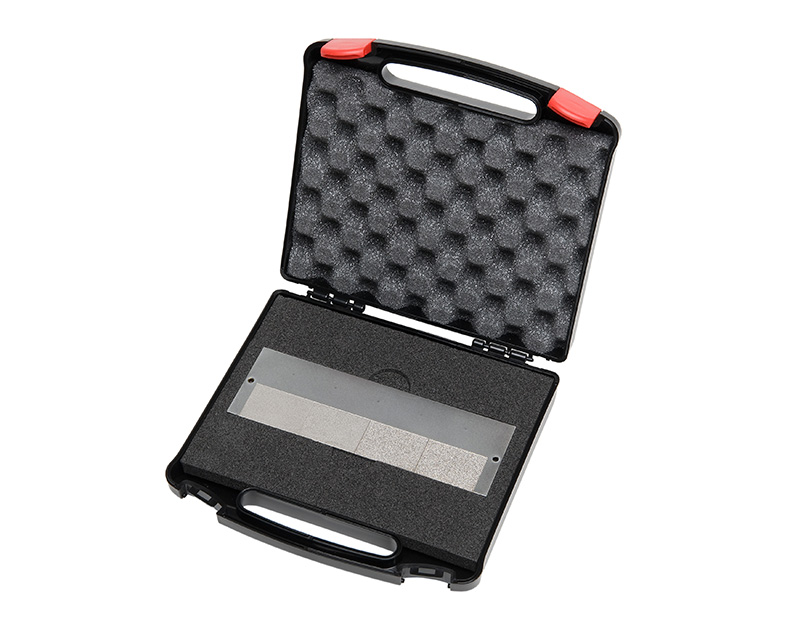

Reference Test Panel 2

Complying with DIN EN ISO 3452-3:

  • Reference Test Panel 2
    (order no.: 9992.100)

Further information to be found in our comprehensive bilingual leaflet.

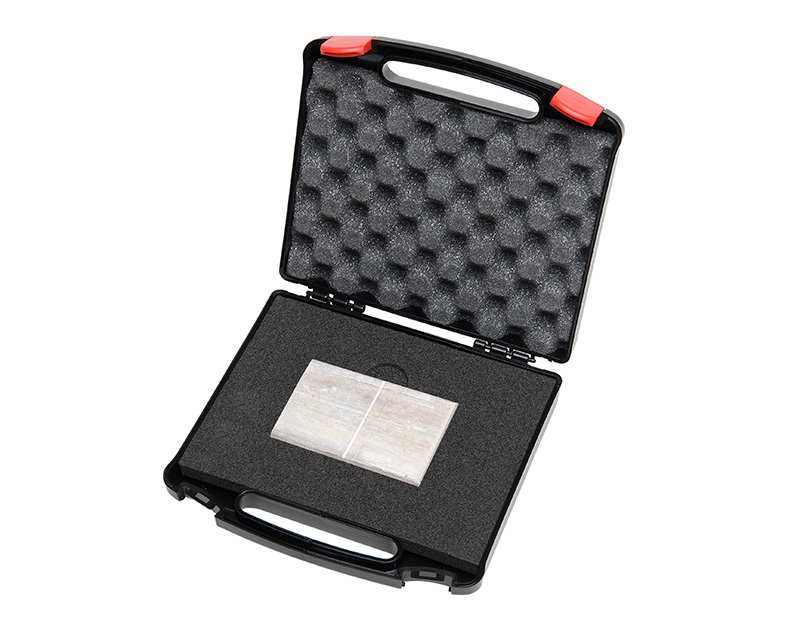

Aluminium Test Block

According to ASME V and DIN EN ISO 3452-5 and -6:

  • Aluminium Test Block
    (order no.: 9994.100)
