Wall Thickness Gauge ECHOMETER 1076 TC Data

Product Description

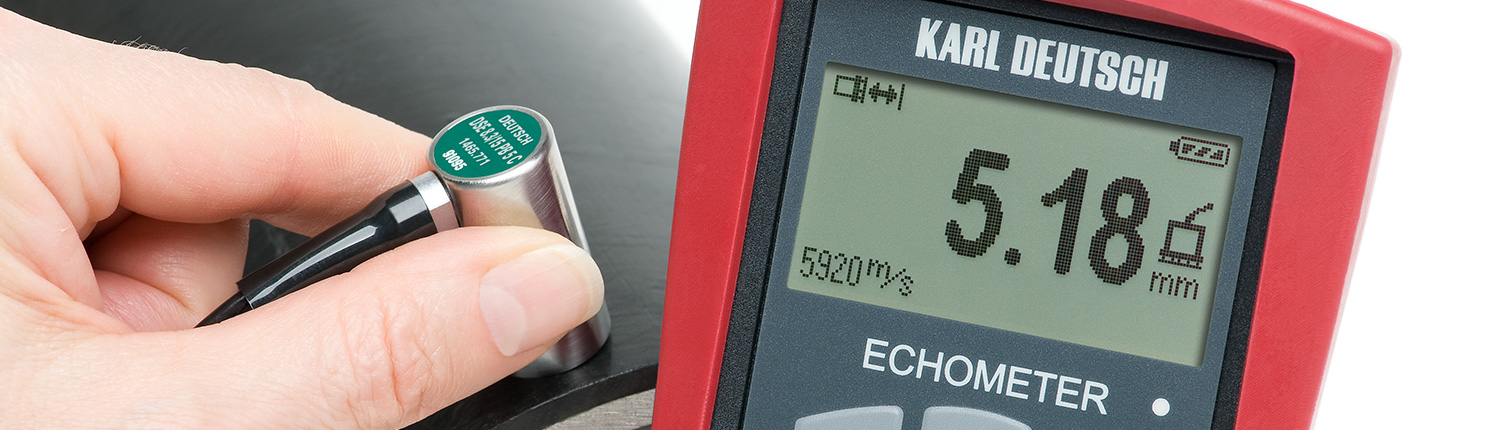

With the standard procedure (TP-BE mode) for measuring wall thickness and sound velocity, the probe is placed on the uncoated surface of the material to be measured.

The ECHOMETER 1076 TC Data offers more: Paint or plastic coatings up to a thickness of approx. 4 mm can be blanked out in order to precisely determine the wall thickness also through the coating. The measurement result is then calculated using successive backwall echoes (BE-BE mode).

The data management makes it possible to store measured values in folders, as you are accustomed to on the PC. For further data evaluation a PC can be connected via the interface.

The ECHOMETER 1076 Data works with TR probes. In addition to a standard probe for the most common wall thicknesses from 1.2 to 250 mm, a high-resolution probe for thin-walled components from 0.5 to 25 mm and a low-frequency probe for wall thicknesses up to 400 mm are available.

Key Facts

  • Wall thickness measuring range (depending on the probe and the parameters microstructure, shape and surface): 0.5 to 400 mm
  • Sound velocity measurement in the range from 100 to 19,999 m/s
  • Graphic display
  • Statistical analysis
  • Data storage
  • PC interface
  • Unit switchable: mm/Inch
  • Resolution switchable: 0.1 or 0.01
  • Splash-proof housing according to IP54
  • Dimensions: 13.1 cm x 8.1 cm x 3.2 cm, including rubber frame for housing protection

Compared to ECHOMETER 1076 Data:

+ Measurement also possible on coated material

Versions

Wall Thickness Gauge ECHOMETER 1076 TC Data
(order no.: 1076.003)

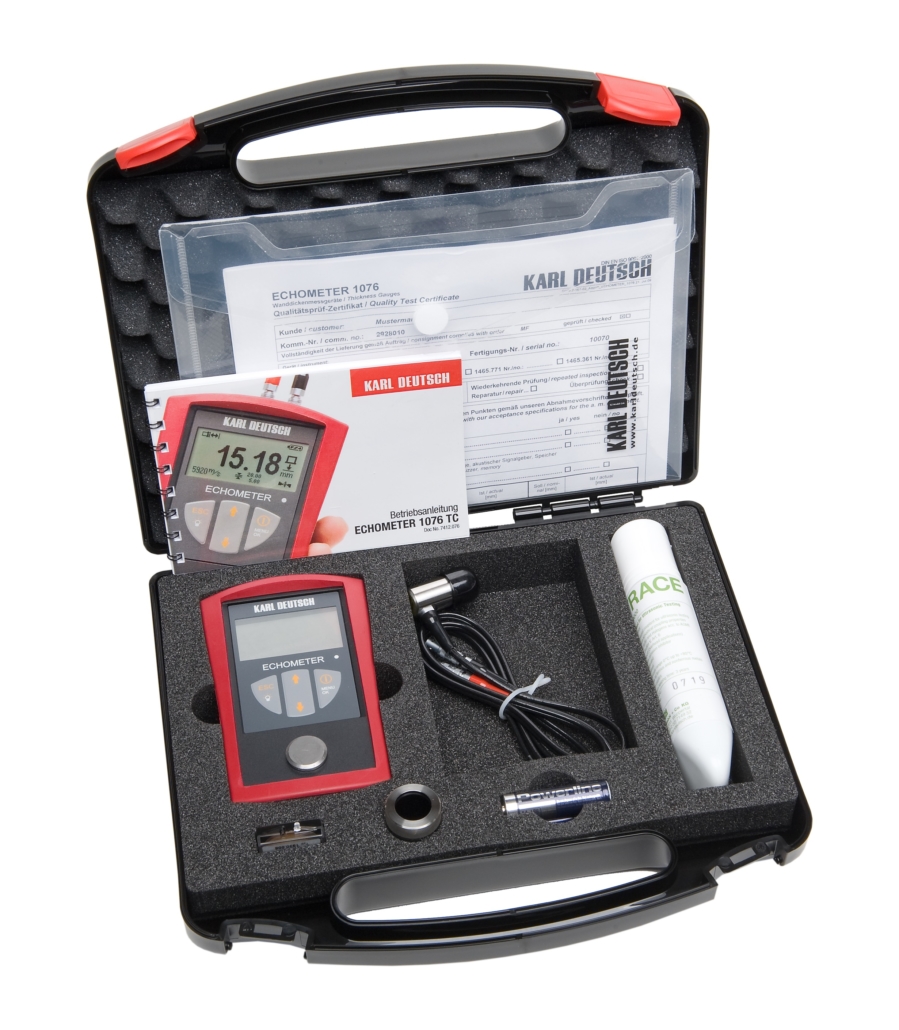

The ECHOMETER 1076 TC Data in robust protective case

Further Information

Our comprehensive brochure:

Things to know and accessories:
