Probes for Coating Thickness Measurement
The LEPTOSKOP 2042 works with external, exchangeable probes. These are designed for Fe- (Magnetic Method according to DIN EN ISO 2178) and NFe-base materials (Eddy Current Method according to DIN EN ISO 2360). The wide selection allows for versatile use of the Coating Thickness Gauge even when measuring on complex geometries and under difficult testing conditions. Coating thicknesses up to 20 mm are possible.
Magnetic Method according to DIN EN ISO 2178
For all non-magnetic coatings (e.g. paint, lacquer, powder lacquer, enamel, plastics, zinc, chromium, copper) on (ferro)-magnetic substrate (Fe) (e.g. iron and steel).
This method utilises the magnetic properties of the base material. A coil generates a magnetic field, which is amplified by the ferromagnetic substrate. To determine the coating thickness, a sensor measures the magnetic interaction, which becomes weaker the thicker the non-magnetic coating is.
Eddy Current Method according to DIN EN ISO 2360
For all non-conductive coatings (e.g. lacquer, paint, powder lacquer, anodized surface, plastics) on (electrically) conductive base material (NFe) (e.g. aluminium, copper, brass).
This method utilises the electrical conductivity of the base material. A coil generates a magnetic field, which induces an eddy current in the material. To determine the coating thickness, a sensor measures the counter-magnetic field caused by the eddy current, which becomes weaker as the thickness of the non-conductive layers increases.
Click the images to open a detailed view with further information and measurements in mm.
| Probes | Probe Type | Measuring Range | Order No. |
|---|---|---|---|
 |
Dual Probe Fe/NFe 0° | 0 – 3,000 µm Fe 0 – 1,250 µm NFe |
2442.410 |
 |
Probe Fe 0° | 0 – 5,000 µm | 2442.100 |
 |
Probe Fe 90° | 0 – 5,000 µm | 2442.110 |
 |
Probe Fe S 0° | 0.5 – 20 mm | 2442.120 |
 |
Probe NFe 0° | 0 – 1,000 µm | 2442.130 |
 |
Probe NFe S 0° | 0 – 3,750 µm | 2442.140 |
 |
Two-Pole Probe Fe | 0.5 – 12.5 mm | 2442.200 |
 |
Micro Probe Fe 0° | 0 – 500 µm | 2442.300 |
 |
Micro Probe NFe 0° | 0 – 500 µm | 2442.310 |
 |
Micro Probe Fe 45° | 0 – 500 µm | 2442.320 |
 |
Micro Probe NFe 45° | 0 – 500 µm | 2442.330 |
 |
Micro Probe Fe 90° | 0 – 500 µm | 2442.340 |
 |
Micro Probe NFe 90° | 0 – 500 µm | 2442.350 |
Further information
Our comprehensive brochure:
Things to know and accessories:

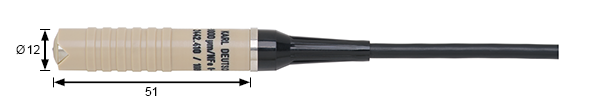

Dual Probe Fe/NFe 0°
Dual Probe Fe/NFe 0° for two measurement methods in one probe
Order No.: 2442.410
Measuring Range: 0 – 3,000 µm Fe, 0 – 1,250 µm NFe

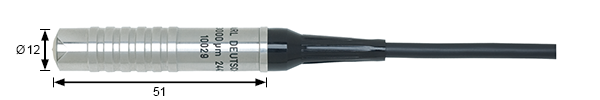

Probe Fe 0°
Standard Probe Fe 0° for all measurements on large, easily accessible areas
Order No.: 2442.100
Measuring Range: 0 – 5,000 µm

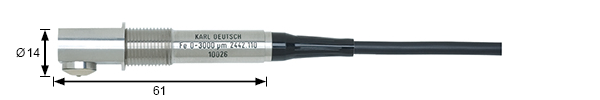

Probe Fe 90°
Standard Probe Fe 90° for measurements in hard-to-reach areas e.g. pipe inner walls
Order No.: 2442.110
Measuring Range: 0 – 5,000 µm
Probe Fe S 0°
Standard Probe Fe S 0° for measurements of greater coating thicknesses
Order No.: 2442.120
Measuring Range: 0.5 – 20 mm

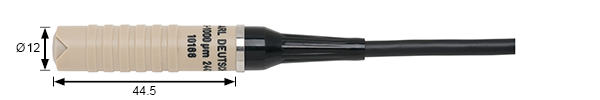

Probe NFe 0°
Order No.: 2442.130
Measuring Range: 0 – 1,000 µm
Probe NFe S 0°
Order No.: 2442.140
Measuring Range: 0 – 3,750 µm
Two-Pole Probe Fe
Two-Pole Probe Fe for measurements of greater coating thicknesses e.g. internal coatings on pipes
Order No.: 2442.200
Measuring Range: 0.5 – 12.5 mm

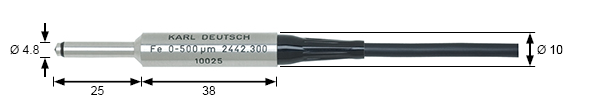

Micro Probe Fe 0°
Micro Probe Fe 0° for measurements on very small dimensions and in hard-to-reach areas, e.g., at the bottom of boreholes
Order No.: 2442.300
Measuring Range: 0 – 500 µm

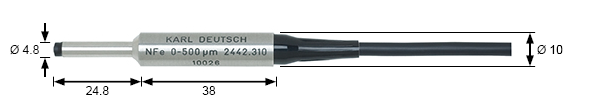

Micro Probe NFe 0°
Micro Probe NFe 0° for measurements on very small dimensions and in hard-to-reach areas, e.g., at the bottom of boreholes
Order No.: 2442.310
Measuring Range: 0 – 500 µm

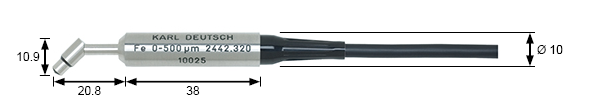

Micro Probe Fe 45°
Micro Probe Fe 45° for measurements on very small dimensions and in hard-to-reach areas
Order No.: 2442.320
Measuring Range: 0 – 500 µm

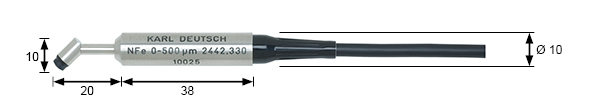

Micro Probe NFe 45°
Micro Probe NFe 45° for measurements on very small dimensions and in hard-to-reach areas
Order No.: 2442.330
Measuring Range: 0 – 500 µm
Micro Probe Fe 90°
Micro Probe Fe 90° for measurements on very small dimensions and in hard-to-reach areas e.g. on the inner walls of pipes and boreholes
Order No.: 2442.340
Measuring Range: 0 – 500 µm
Micro Probe NFe 90°
Micro Probe NFe 90° for measurements on very small dimensions and in hard-to-reach areas e.g. on the inner walls of pipes and boreholes
Order No.: 2442.350
Measuring Range: 0 – 500 µm
