FLUXA Inspection Media, Fluorescent

Fluorescent inspection media mainly are used in series testing. The high display contrast allows for even the finest defects to be reliably detected. The inspection media differ mainly in their dilution and corrosion protection.

Fluorescent Inspection Media, Water-Based

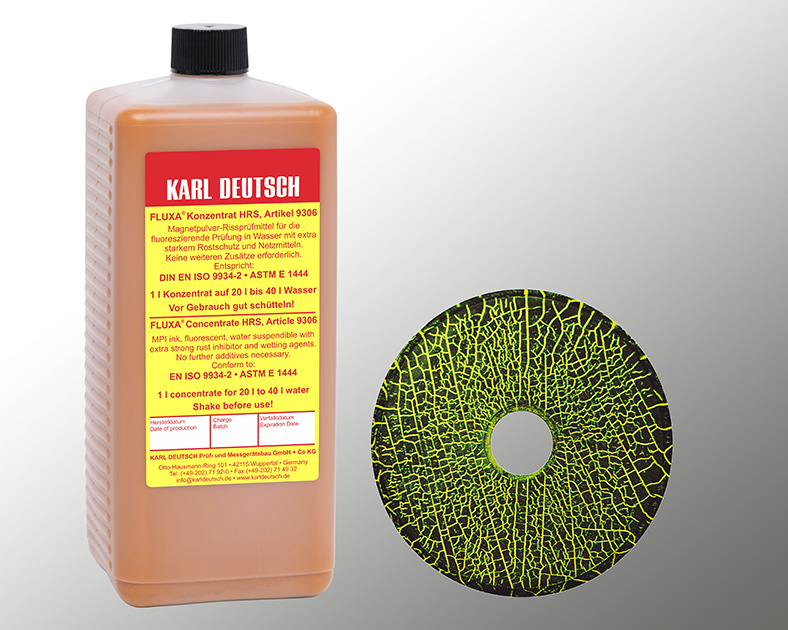

FLUXA Concentrate HRS

  • Yellow-green fluorescent magnetic powder
  • Average particle size: 3 µm
  • Detection of finest defects
  • Water miscible (recommended dilution: 1:20 – 1:40)
  • Contains wetting agent, antifoam and corrosion inhibitor
  • Sample tested according to DIN EN ISO 9934-2

Package

  • 1 l bottle (order no.: 9306.1)
  • 5 l canister (order no.: 9306.2)

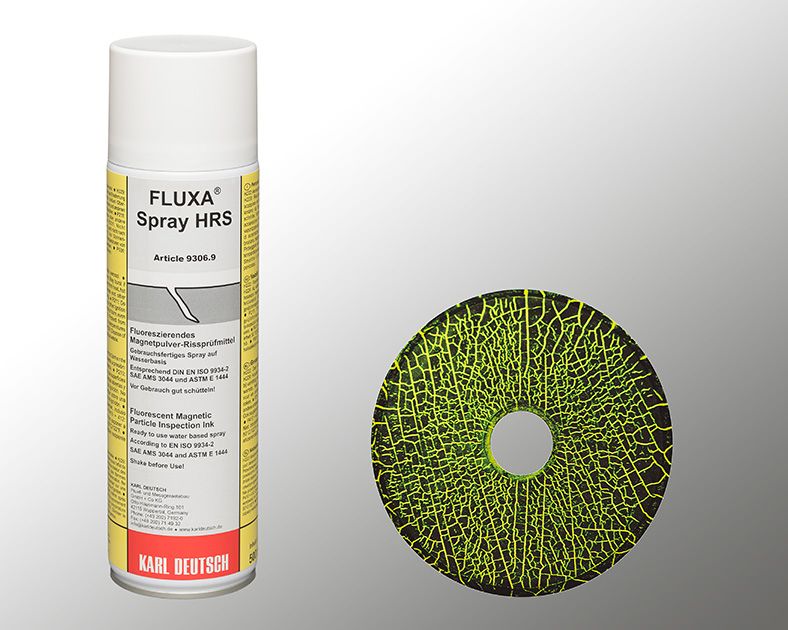

FLUXA Spray HRS

  • Yellow-green fluorescent magnetic powder
  • Average particle size: 3 µm
  • Detection of finest defects
  • Contains wetting agent, antifoam and corrosion protection
  • Ready-to-use; corresponds to a dilution of
    1:20 FLUXA Concentrate HRS in water
  • No labelling required for the aerosol can (no flammable propellants)
  • Type-tested according to DIN EN ISO 9934-2

Package

  • 500 ml aerosol can, ready-to-use (order no.: 9306.9)

FLUXA Concentrate HRS/G

  • Yellow-green fluorescent magnetic powder
  • Average particle size: 3 µm
  • Detection of finest defects
  • Water-miscible (recommended dilution: 1:20 – 1:40)
  • Increased corrosion protection for e.g. cast components
  • Contains wetting agent, antifoam
  • Sample tested according to DIN EN ISO 9934-2

Package

  • 1 l bottle (order no.: 9356.1)
  • 5 l canister (order no.: 9356.2)

FLUXA Concentrate HRS/Special

  • Suitable for surfaces wetted with cooling lubricants or oils
  • Wetting of oily surfaces
  • Yellow-green fluorescent magnetic powder
  • Average particle size: 3 µm
  • Detection of very fine defects
  • Water miscible (recommended dilution: 1:20 – 1:40)
  • Contains wetting agent, antifoam and corrosion inhibitor
  • Sample tested according to DIN EN ISO 9934-2

Package

  • 1 l canister (order no.: 9306.122)
  • 5 l canister (order no.: 9306.22)

FLUXA Concentrate HVP

  • Yellow-green fluorescent magnetic powder with high luminosity
  • Average particle size: 3 µm
  • Detection of finest defects
  • Water-miscible (recommended dilution: 1:40 – 1:80)
  • Contains wetting agent, antifoam and corrosion inhibitor
  • Excellent contrast ratios due to bright powder
  • Suitable for automated systems with camera evaluation
  • Sample tested according to DIN EN ISO 9934-2

Package

  • 1 l bottle (order no.: 9357.1)
  • 5 l canister (order no.: 9357.2)

FLUXA Concentrate HKS

  • Yellow-green fluorescent magnetic powder
  • Average particle size: 3 µm
  • Highly concentrated, water-miscible (recommended dilution: 1:100 – 1:200)
  • Low corrosion protection, suitable for e.g. semi-finished products
  • Contains wetting agent, antifoam
  • Sample test according to DIN EN ISO 9934-2

Package

  • 1 l bottle (order no.: 9366.17)
  • 5 l canister (order no.: 9366.27)

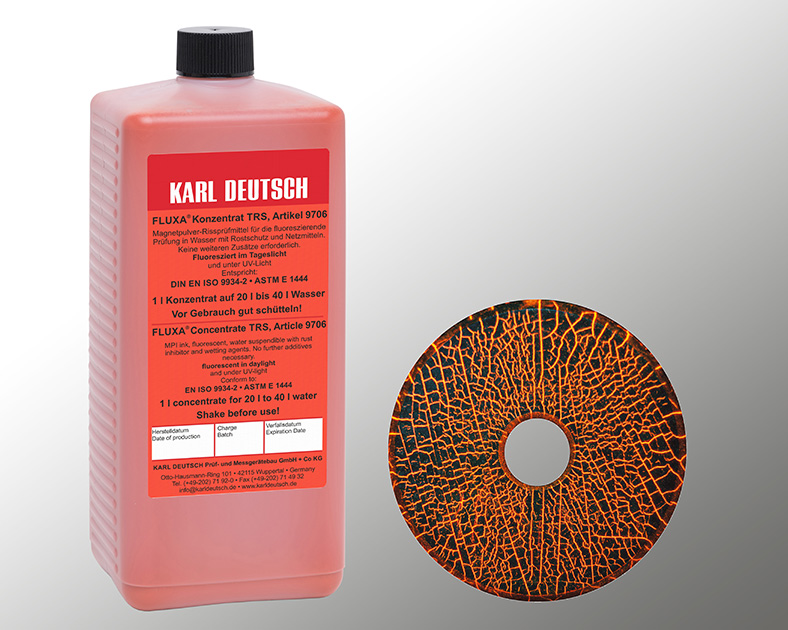

FLUXA Concentrate TRS

  • Red fluorescent magnetic powder
  • Also suitable for testing under daylight
  • Average particle size: 3 µm
  • Water miscible (recommended dilution: 1:20 – 1:40)
  • Contains wetting agent, antifoam and corrosion inhibitor
  • Sample tested according to DIN EN ISO 9934-2

Package

  • 1 l bottle (order no.: 9706.1)
  • 5 l canister (order no.: 9706.2)

FLUXA Concentrate FGR/G

  • Green fluorescent magnetic powder
  • Average particle size: 3 µm
  • Detection of finest defects
  • Water miscible (recommended dilution: 1:20 – 1:40)
  • Increased corrosion protection
  • Contains wetting agent, antifoam
  • Sample tested according to DIN EN ISO 9934-2

Package

  • 1 l bottle (order no.: 9256.1)
  • 5 l canister (order no.: 9256.2)

Fluorescent Inspection Media, Oil-Based

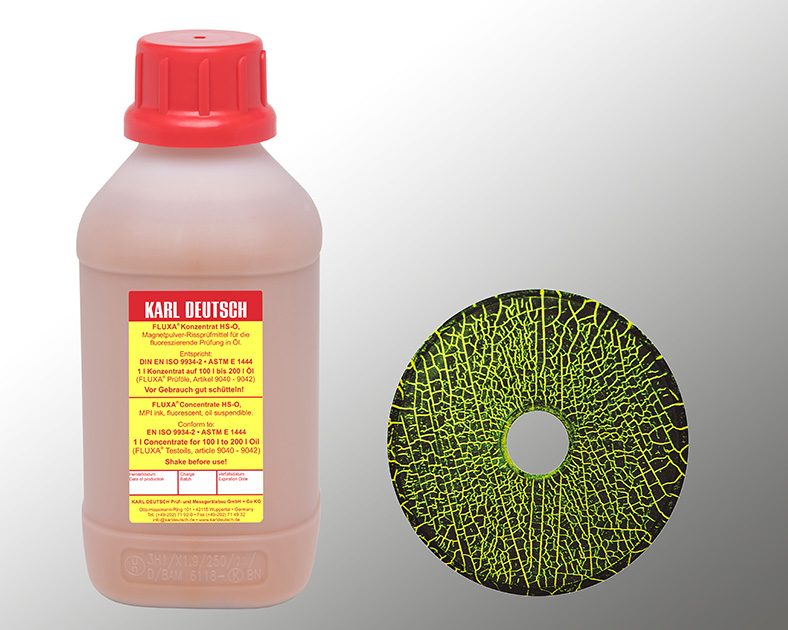

FLUXA Concentrate HS-O

  • Yellow-green fluorescent magnetic powder
  • Average particle size: 3 µm
  • Detection of finest defects
  • Oil-miscible (recommended dilution: 1:100 – 1:200)
  • Sample test according to DIN EN ISO 9934-2

Recommended Testing Oils

Package

  • 1 l bottle (order no.: 9314.1)

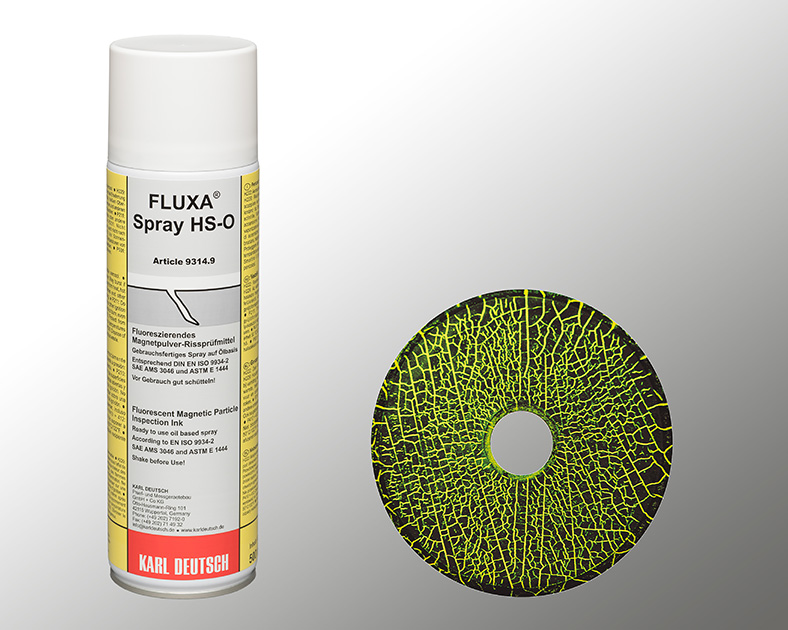

FLUXA-HS-O Ready-to-use

  • Yellow-green fluorescent magnetic powder
  • Average particle size: 3 µm
  • Detection of finest defects
  • Readily diluted with FLUXA Testing Oil
  • Flash point > 65 °C
  • Viscosity: 2 cSt (20 °C)
  • Sample tested according to DIN EN ISO 9934-2

Package

  • 500 ml aerosol can (order no.: 9314.9)
  • 10 l canister (order no.: 9314.2)

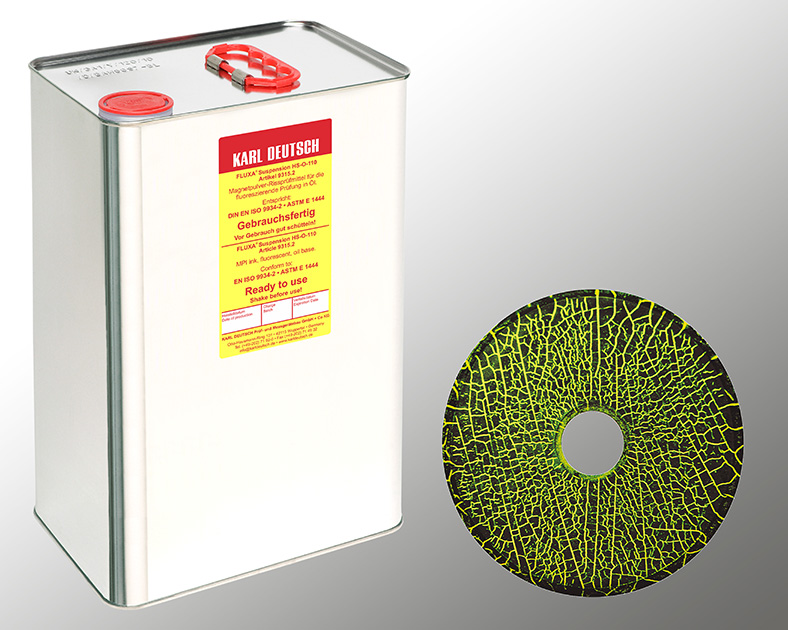

FLUXA-HS-O-110 Ready-to-use

  • Yellow-green fluorescent magnetic powder
  • Average particle size: 3 µm
  • Detection of finest defects
  • Readily diluted with FLUXA Testing Oil
  • Flash point > 100 °C
  • Viscosity: 3.8 cSt (20 °C, 68 °F) / 2.6 cSt (38 °C, 100 °F)
  • Sample test according to DIN EN ISO 9934-2

Package

  • 10 l canister (order no.: 9315.2)

Dry Powder

DEUTROFLUX Powder COARSE

  • Yellow-green fluorescent dry powder
  • Particle size: 90 % of the particles are between 100 µm and 300 µm
  • Ideal for semi-finished products
  • Suitable for testing hot components / surfaces (max. 300 °C)

Package

  • 10 kg bucket (order no.: 9030.1)
  • 125 kg drum (order no.: 9030.2)

DEUTROFLUX Powder FINE

  • Yellow-green fluorescent dry powder
  • Particle size: 90 % of the particles are between 60 µm and 200 µm
  • Ideal for semi-finished products
  • Suitable for testing hot components / surfaces (max. 300 °C)

Package

  • 10 kg bucket (order no.: 9031.1)
  • 125 kg drum (order no.: 9031.2)

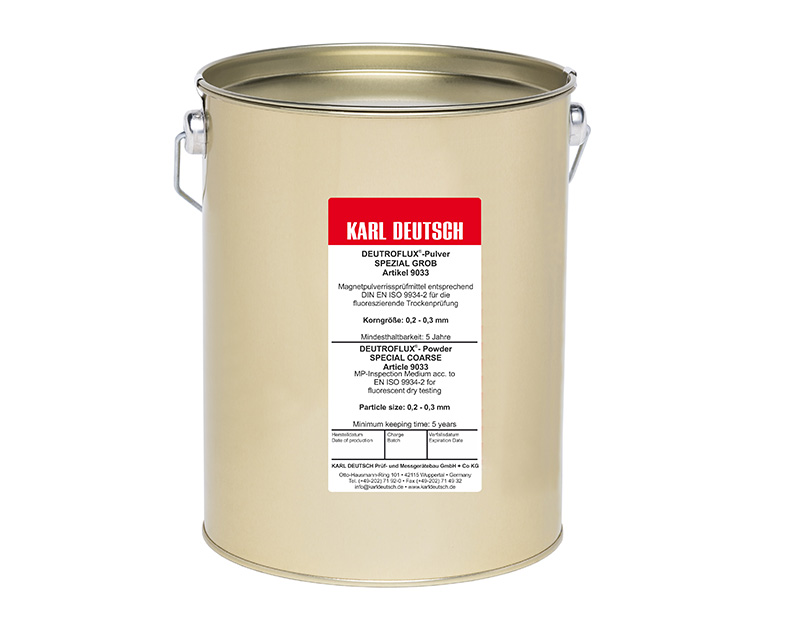

DEUTROFLUX Powder SPECIAL COARSE

  • Yellow-green fluorescent dry powder
  • Particle size: 90 % of the particles are between 200 µm and 300 µm
  • Ideal for semi-finished products
  • Suitable for testing hot components / surfaces (max. 300 °C)

Package

  • 10 kg bucket (order no.: 9033.1)
  • 20 kg bucket (order no.: 9033.2)
